Specialist Drills

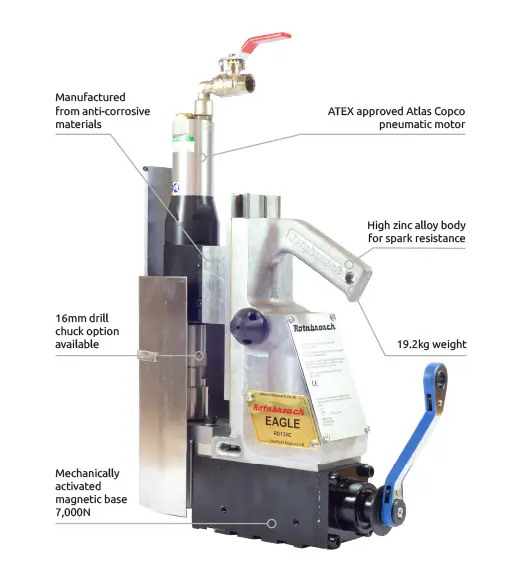

EAGLE

Designed from anti spark material, perfect for use in corrosive hazardous areas.

Fully ATEX approved II 2G T4 II D110°C

Suitable for drilling up to 52mm diameter by 50mm depth.

Designed from anti spark material, perfect for use in corrosive hazardous...

specifications

Attribute name	Attribute value
Rotabroach
Model Number	RD130C
Motor Specification	13 lts/sec – 28CFM @ 5.5 bar min – 6.9 bar max
No load RPM	270 RPM
Max Cutting Capacity	ø52 x 50mm deep
Drill Chuck Capacity	ø16mm
Overall Dimension	Height: 560mm / Width: 160mm with Capstan / Length: 320mm with Guard
Machine Weight	19.2KG
Magnetic Adhesion	7000N
Magnet Size	175mm x 75mm
Safety Features	Atlas Copco pneumatic motor for safety in hazardous areas / Fixed Guard
