Magnetic Drills

ELEMENT 50 PIVOT MAGNET

Powerful 1500w motor with a two-speed mechanical gearbox.
Twist drill, threading and countersinking capabilities.
Suitable for drilling up to 40mm diameter by 50mm depth.
CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
Double pivoting magnet base.
Internal cabling reduces the risk of damage and downtime for your magdrill.
Mounted coolant bottle, steel sliding guard and switchable handle.
490mm to 640mm in height.
Can be also used for standard flat surface drilling.
Dual motor protection, minimising wear and downtime of this magdrill.
The E50 Pivot Magnet is specifically designed for drilling on curved, uneven...
SPECIFICATIONS DOWNLOADS TECHNICAL RELATED PRODUCTS FAQs

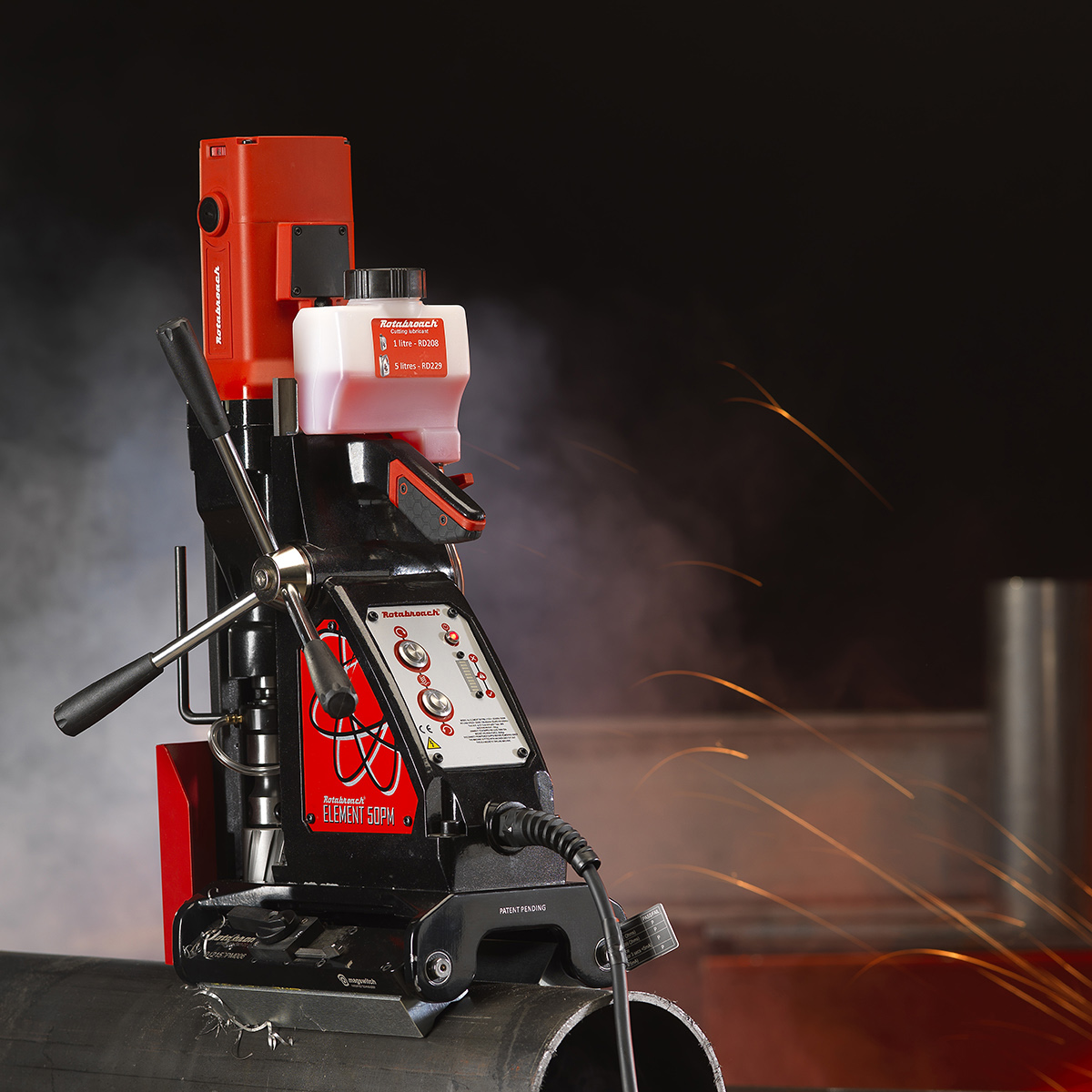

The Element 50 Pivot Mag Drill

This development of the outstanding element 50 utilizes a pivot base permanent magnet to allow working on curved, uneven and flat surfaces, even as thin as 3mm in thickness. This drill is perfect for pipework contractors, ship building, power generation sites and other industries who want to take advantage of the impressive element 50 in an environment requiring increased safety and versatility.

Benefitting from the same innovations as the element 50, such as rotabroach’s cutsmart technology and overload protection, the drill also has double pivoting permanent magnet technology (the magnet does not require electrical power) and twist drill, threading and countersinking capabilities.

CUTSMART – Prolonging Power Tool Performance

Mag drills are powerful tools that can cut through materials at an impressive rate, but they also pose hazards if not used appropriately, or an unexpected fault occurs. Even the most experienced steel fabricator, track expert or ship builder can have accidents if their tools let them down, and that’s why we wanted to create cutsmart – to ensure this never happens.

With cutsmart, you will always know if too much force is being applied to your steel, aluminium, copper, or other material, so that you can respond quickly, safely and effectively. Customer safety is of the utmost importance to us here at rotabroach, and with cutsmart, your mag drills will help maintain your safety standards no end.

Key Features

  • Maintains Strong Grip On Curved Steel And Pipework Down To 3.5Mm Material Thickness.
  • Can Be Also Used For Standard Flat Surface Drilling.
  • Twist Drill, Threading And Countersinking Capability.
  • Permanent Magnet Technology – Magnet Does Not Require Electrical Power.
  • Double Pivoting Magnet Base.
  • Safe And Hidden Away Internal Cabling.
  • Mounted Coolant Bottle, Steel Sliding Guard And Switchable Handle.
  • Centered Control Panel With Cutsmart™ For Increased Tool And Machine Life.
  • 32mm Max Cutter Diameter
  • Overload Protection Ensures Your Magdrill Is Kept In The Best Possible Condition
  • Powerful 1500w Motor With A Two Speed Mechanical Gearbox
specifications
Attribute nameAttribute value
Rotabroach
Model NumberElement 50 / 1PM /Element 50 / 3PM
Motor Specification110V 1500W / 230V 1500W
No load RPMLow Gear:100-265RPM/ High Gear: 200-500 RPM
Max Cutting Capacityø50 x50mm deep - 20mm with 2MT twist drill
Overall DimensionHeight:min 490mm - max 640mm/ Width:190mm / Length: 317 mm
Machine Weight110v/ 18kg/ 230v / 17.7kg
Magnetic Adhesion8430N
Magnet Size277mm x 190m
Safety FeaturesCutsmart™ Technology / Magnetic Detection / Secondary Motor Protection

ELEMENT 50 PIVOT MAGNET FAQS
