Magnetic Drills

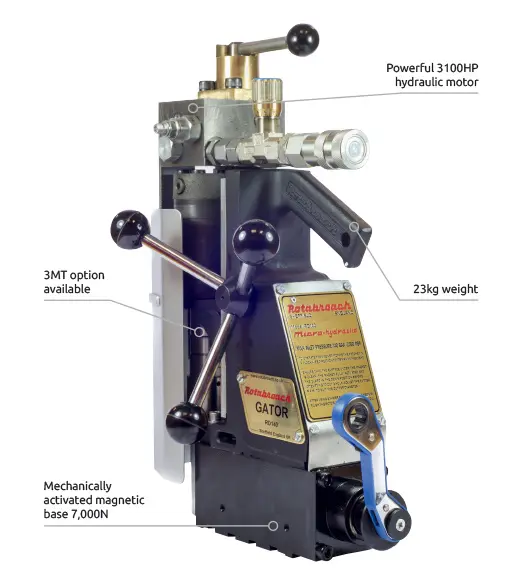

GATOR

Used in applications when only hydraulic supplies are most convenient or necessary.

Suitable for drilling up to 52mm diameter by 50mm depth.

Used in applications when only hydraulic supplies are most convenient or...

specifications

Attribute name	Attribute value
Rotabroach
Model Number	RD140
Motor Specification	140 BAR (2050 PSI)
No load RPM	630 RPM
Max Cutting Capacity	ø52 x 50mm deep
Drill Chuck Capacity	ø16mm
Overall Dimension	Height: 520mm / Width: 160mm with Capstan / Length: 320mm with Guard
Machine Weight	23KG
Magnetic Adhesion	7000N
Magnet Size	175mm x 75mm
Safety Features	Fixed Guard
